Toe Cylinders Spring Return

Product Details

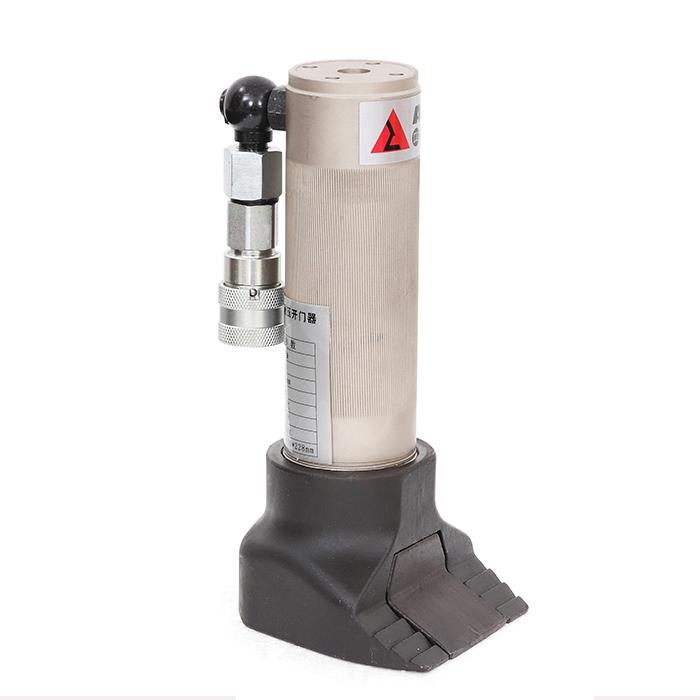

Toe Cylinders - Spring Return ATKM-63-71/117-A is used for various lifting applications, door opener and so on. The low insertion height can make sure that the toe cylinders spring return can insert into the narrow gap, so it is suitable for a wide variety of trams and other objects such as metal doors with multiple locks or fire security doors, accidents or police work in buildings. Toe cylinder spring return is powered by the hand foot pump BS72/1.5-E, it can return to the closed position automatically after the work, easy to use. It is lightweight and compact, very easy to carry and transport.

Item

Specification

Model

ATKM-63-71/117-A

Closed Height (mm)

230

Opening Distance (mm)

117

Weight (kg)

5.5

Dimension (LxWxH mm)

122x100x230
