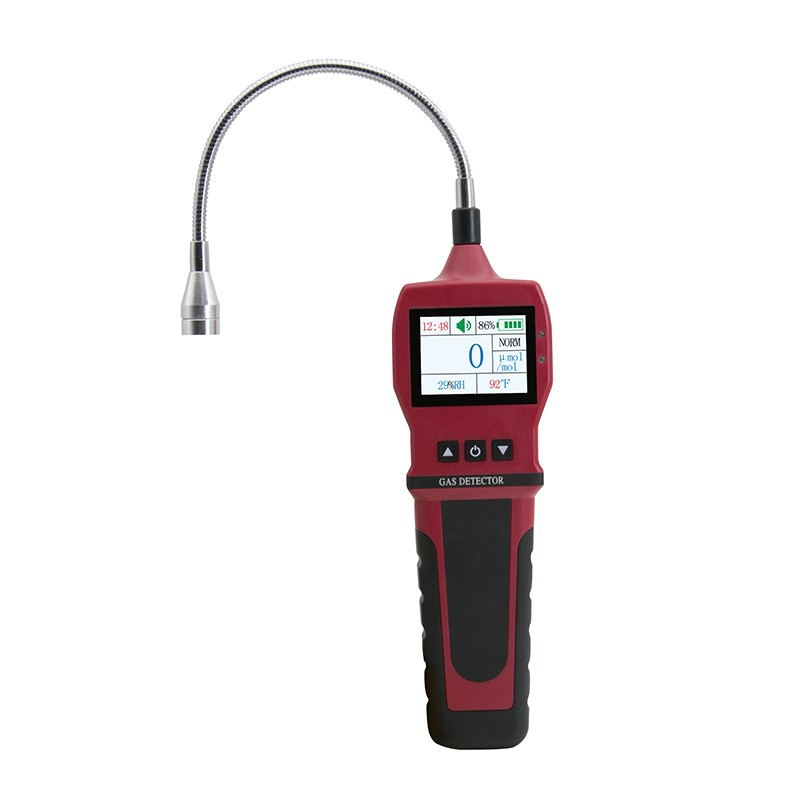

Portable Gas Leak Detector

INTRODUCTION

*MCU control, low consumption

*High resolution STN LCD

*Housing made of high strength engineering plastics and compound anti-slip rubber

*Detection range (low alarm point, high alarm point) adjustable

*Low battery alert, intrinsically safe design

*alarm types: sound (mute mode also available), light and vibration

*Gas calibration completed by the factory

*Zero adjustment and data logging

Target gas	Combustible gas
Range	0-10,000ppm (μmol/mol)
Sampling method	Natural diffusion
Alarm point	Default: Low alarm: 500ppm; High alarm: 2000ppm. Support personalized setting.
Alarm types	Audible buzzer alarm; Visual LED light alarm; Vibration alarm
Warm-up time	60S
Response time	?30s
Protection level	IP65
Explosion-proof grade	Exib IIB T3 Gb
Sensor type	Imported FIGARO sensor
Sensor life	2 years
Power supply	Rechargeable lithium battery, DC3.7V 1800mAH
Charging time	6h-8h
Continuous working hours	No less than 8 hours (normal working environment)
Working condition	Temperature: -10?40? Humidity: ≤95% RH with no condensation.
Storage condition	Temperature: -20?50? Humidity: ≤85% RH, avoid caustic gases or substances.
Weight	Approx. 300g (excluding accessories)
Dimension	Approx. 210mm(L)×66mm(W)×30mm(H)
Packing list	Detector, Carrying case, Charger, USB cable, Warranty card, Thank-you card.

SPECIFICATIONS
