AT J2000B 8 Inch Multi para.Patient Monitor

AT J2000B 8 Inch Multi para.Patient Monitor

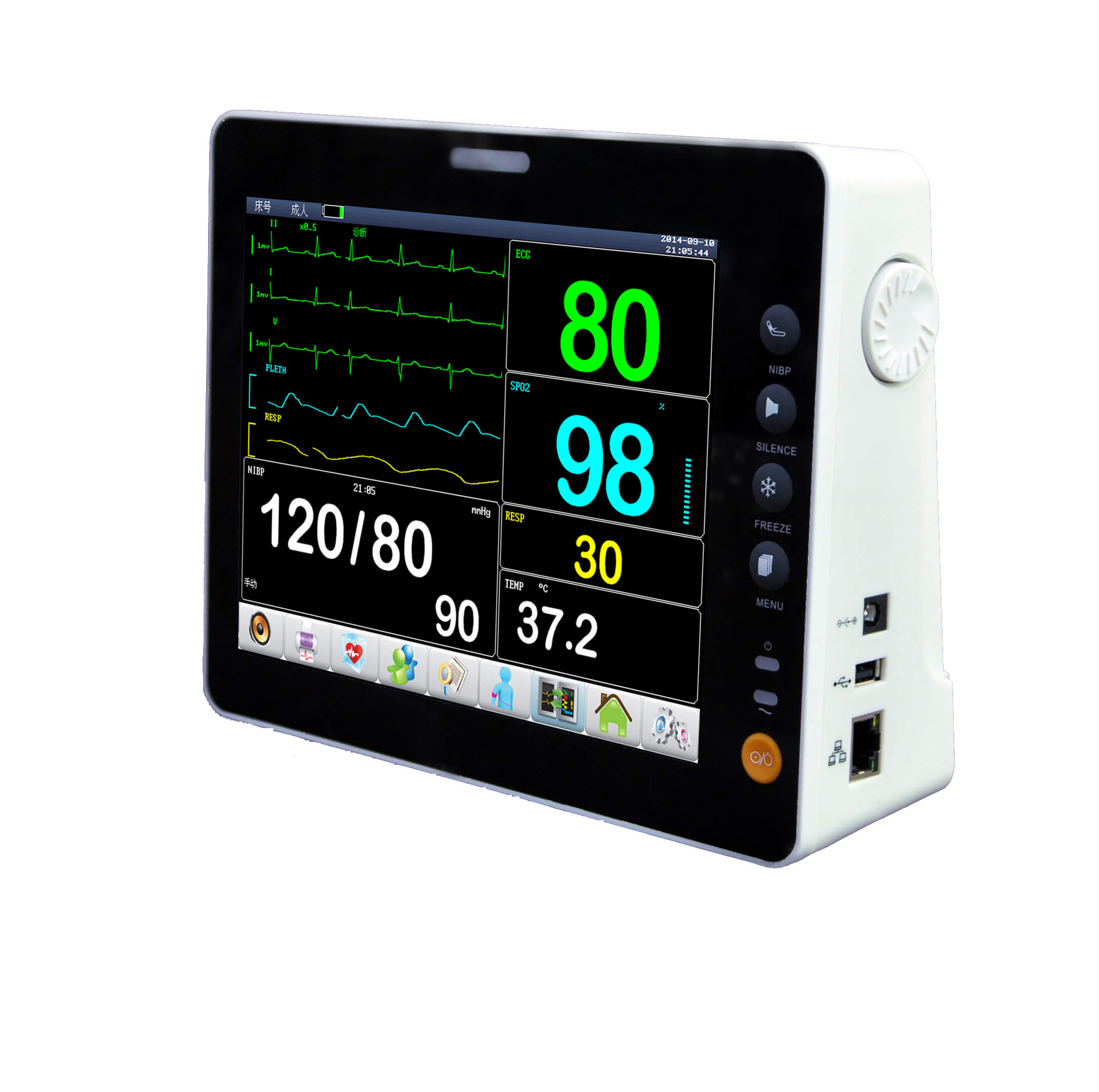

AT-J2000B 8 Inch Multi-para.Patient Monitor can detect and indicate various parameters reflecting the patient's physiological condition,including ECG,Heart Rate,RESP,SPCO2,NIBP and etc. It has been widely used in ICU and various emergency places.



1. Brief operation interface, Touchscreen is optional.

2. Up to 2-5 hours working capacity of built-in rechargeable Li-ion battery.

3. 12.1"high resolution color TFT LCD display.

4. Holographic waveform trends playback for 2 weeks and 12 hours off electricity saving.
5. Built-in networking to realize central monitoring function.



1. Standard parameters:ECG,RESP,NIBP,SPO2,PR/HR,TEMP.

2.13 types Arrhythmic Analysis, Multi-lead ECG waveforms display in Phase, 15 types Drug calculation and titration table.

3.Anti-ESU, anti-defibrillator; RA-LL impedance.

4.SPO2 can testing for 0.1% weak,high accuracy.

5.Unique breathing measurement technology, real-time monitoring, intelligent filter design, eliminate interference, measuring respiratory accurately.

6.Trend Coexist interface for all parameter to observe easily.

7.OxyCRG Dynamic View display, More intultive with all parameters.

8.Platform scalable with cable or wireless connecting to central monitoring.

9.Printer /Recorder is optional for real-time printing.

10.Brief operation interface, Touchscreen is optional.

Up to 2-5 hours working capacity of built-in rechargeable Li-ion battery.

11. 8 inch high resolution color TFT LCD display.

12. Holographic waveform trends playback for 2 weeks and 12 hours off electricity saving.
13.Built-in networking to realize central monitoring function.

14.Optional: Touchscreen, VGA, 2-IBP, HDMI, ETCO2.

15.System start up only need 10 seconds with ARM-A5 Nuclear technology.



1. ECG



Lead Mode: 5 Leads or 3 Leads

3 Leads?RA?LA?LL?Lead mode?I?II?III

5 Leads?RA?LA?LL?RL?V?Lead mode?I?II?III?aVR?aVL?aVF?V

Gain  ´250?´500?´1000?´2000



Heart Rate :



Range:    Adult?15 ? 300bpm ;  Neonate / Pediatric?15 ? 350 bpm

Accuracy?±1%or ±1bpm?

Resolution?1 bpm

Sensitivity  >200 uV

Differential Input Impedance >5MΩ

Bandwidth

Diagnostic?0.05?130Hz

Monitor?0.5?40Hz

Surgery?1?20Hz





2. RESP



Method: Impedance between R-F(RA-LL)

Scope of base impedance:200?4000Ω

Bandwidth: 0.1~ 2.5 Hz



RESP

Range: Adult?2?120BrPM   Neonate / Pediatric ?2?150 BrPM

Resolution?1 BrPM

Accuracy?±2 BrPM

Suffocation warning:10~40s



3. NIBP



Method: Oscillometric

Mode: Manual, Auto, STAT

Measuring interval in AUTO MODE:1,2,3,4,5,10,15,30,60,90,120,180,240,480 MINS

Measuring interval in STAT MODE 5 MINS

PR range  40?240 bpm

Measuring Range and Resolution

Adult SYS  40?270mmHg

DIA   10?215mmHg

MEAN 20?235mmHg

PED  SYS  40?200mmHg

DIA   10?150mmHg

MEAN   20?165mmHg

NEO  SYS       40?135mmHg

DIA       10?100mmHg

MEAN   20?110mmHg

STATIC NIBP range: 0?300mmHg

Static NIBP accuracy:±3mmHg

Max Average tolerance ±5mmHg?Max. Standard tolerance: 8mmHg

Over-pressure protection:

Adult mode:  300 mmHg

Ped mode:        240 mmHg

Neo mode:  150 mmHg





4. SpO2



Measuring range:  0?100%

Resolution:          1%

Accuracy:           70?100%?±2?0%?69%?????

Pulse Rate:

Measuring range: 20?300bpm

Resolution:   1bpm

Accuracy:           ±3bpm





5. TEMP



Channels: 2

Measuring:

Range: 0?50°C

Resolution  0.1°C

Accuracy :    ±0.1°C?sensor tolerance no not included ?









6. Power



Adapter

Input?AC 90 V?240V, 50/60Hz

Output?DC 12V-20V

Built-in Battery?

TYPE?14.8V, 2200mAH Li-ion rechargeable battery

Operating time?3.5-4 hours working time under full power

Charging time?2 hours
